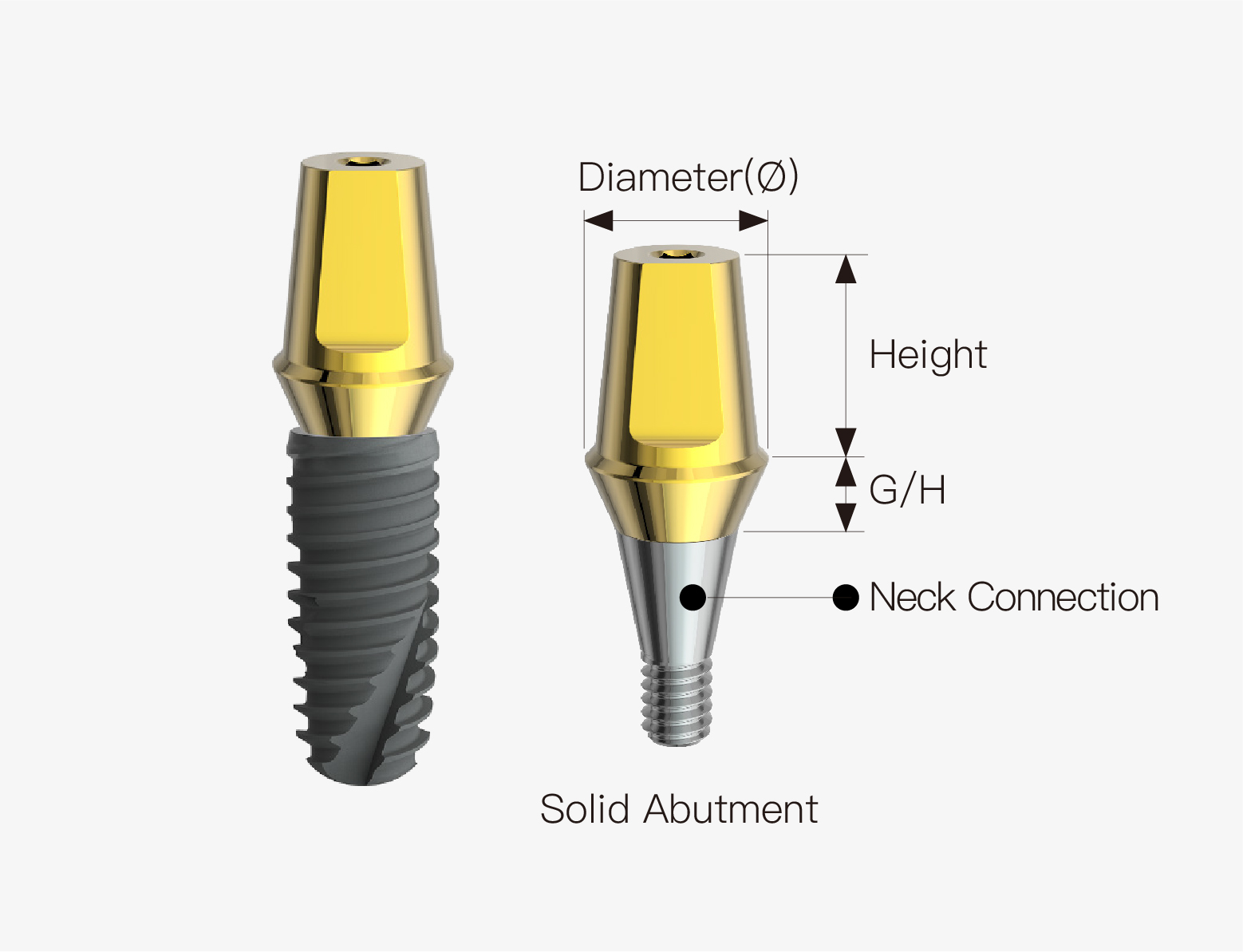

Solid Abutment
| Items | Factors | Specifications |
| 1.Neck Connection | Implant Connection | Narrow Connection(NC) / Regular Connection(RC) |
| 2.Diameter | distance to adjecent teeth | Ø4.0/4.5/5.0/6.0/7.0mm |
| 3.G/H | implant placement depth soft tissue thickness and profile | 1.0/2.0/3.0/4.0/5.0mm |
| 4.Height | Height of adjecent teeth Occlusal height | 4.5/5.5/7.0mm |
Features

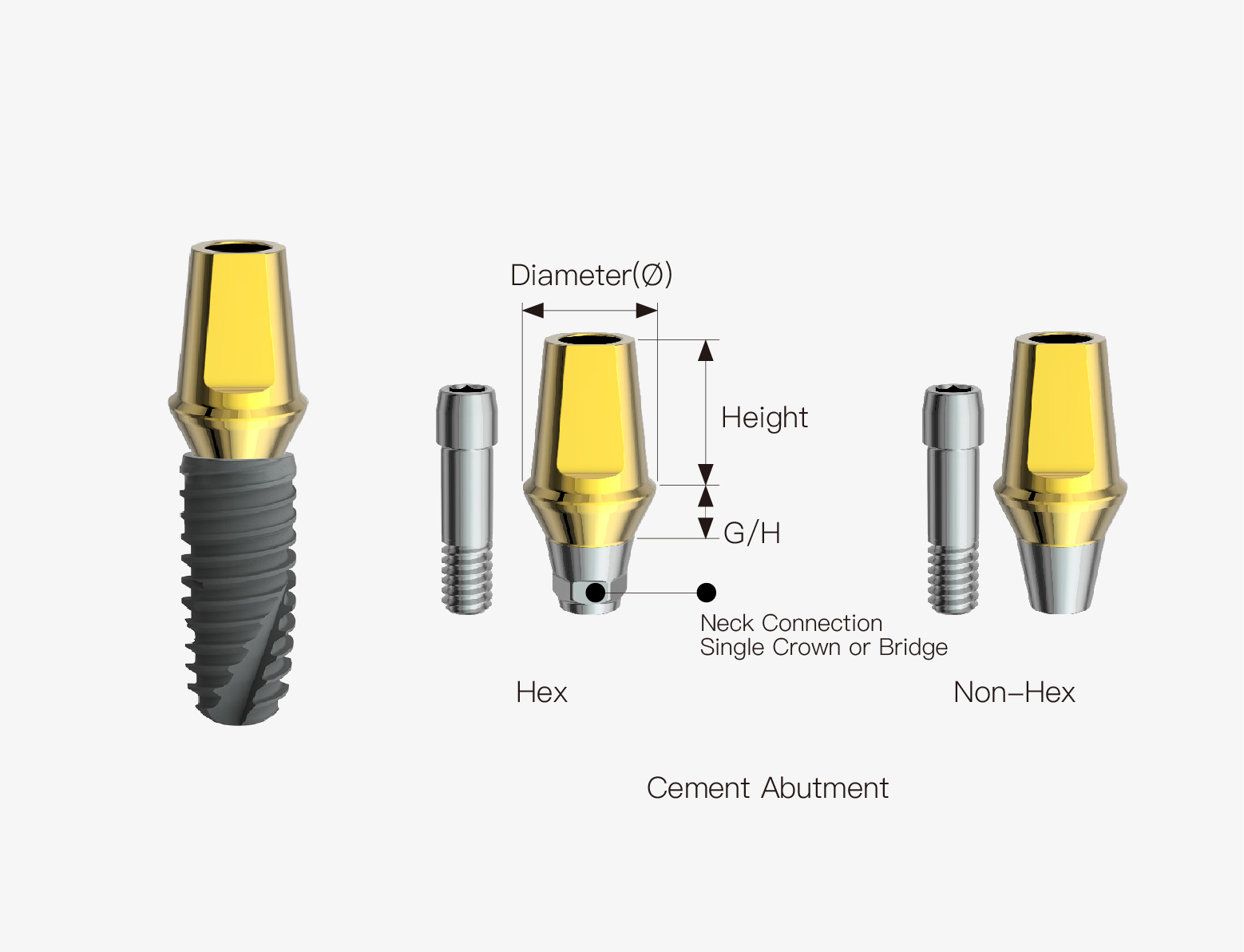

Cement Abutment
| Items | Factors | Specifications |
| 1.Neck Connection | Implant Connection | Narrow Connection(NC) / Regular Connection(RC) |
| 2.Single Crown or Bridge | Number of implant | Hex / Non-Hex |
| 3.Diameter | distance to adjecent teeth | Ø4.5/5.0/6.0/7.0mm |
| 4.G/H | implant placement depth soft tissue thickness and profile | Ø4.5/5.0/6.0/7.0mm |
| 5.Height | Height of adjecent teeth Occlusal height | Ø4.5/4.0/5.5/7.0mm |
Features
Angled Abutment
| Items | Factors | Specifications |
| 1.Neck Connection | Implant Connection | Narrow Connection / Regular Connectio |
| 2.Single crown or bridge | Number of implant | Hex / Non-Hex |
| 3.Diameter | distance to adjecent teeth | Ø4.5/5.0mm |
| 4.G/H | implant placement depth soft tissue thickness and profile | 2.0/4.0mm |
| 5.Height | Height of adjecent teeth Occlusal height | 7.0/8.0mm |
Features
Temporary Abutment
| Items | Factors | Specifications |
| 1.Neck Connection | Implant Connection | Narrow Connection / Regular Connection |
| 2.Single crown or bridge | Number of Implant | Hex / Non-Hex |
| 3.Diameter | distance to adjecent teeth | Ø4.5/5.0mm |
| 4.G/H | implant placement depth soft tissue thickness and profile | 2.0/4.0mm |
| 5.Height | Height of adjecent teeth Occlusal height | 8.0/9.0mm |
Features
